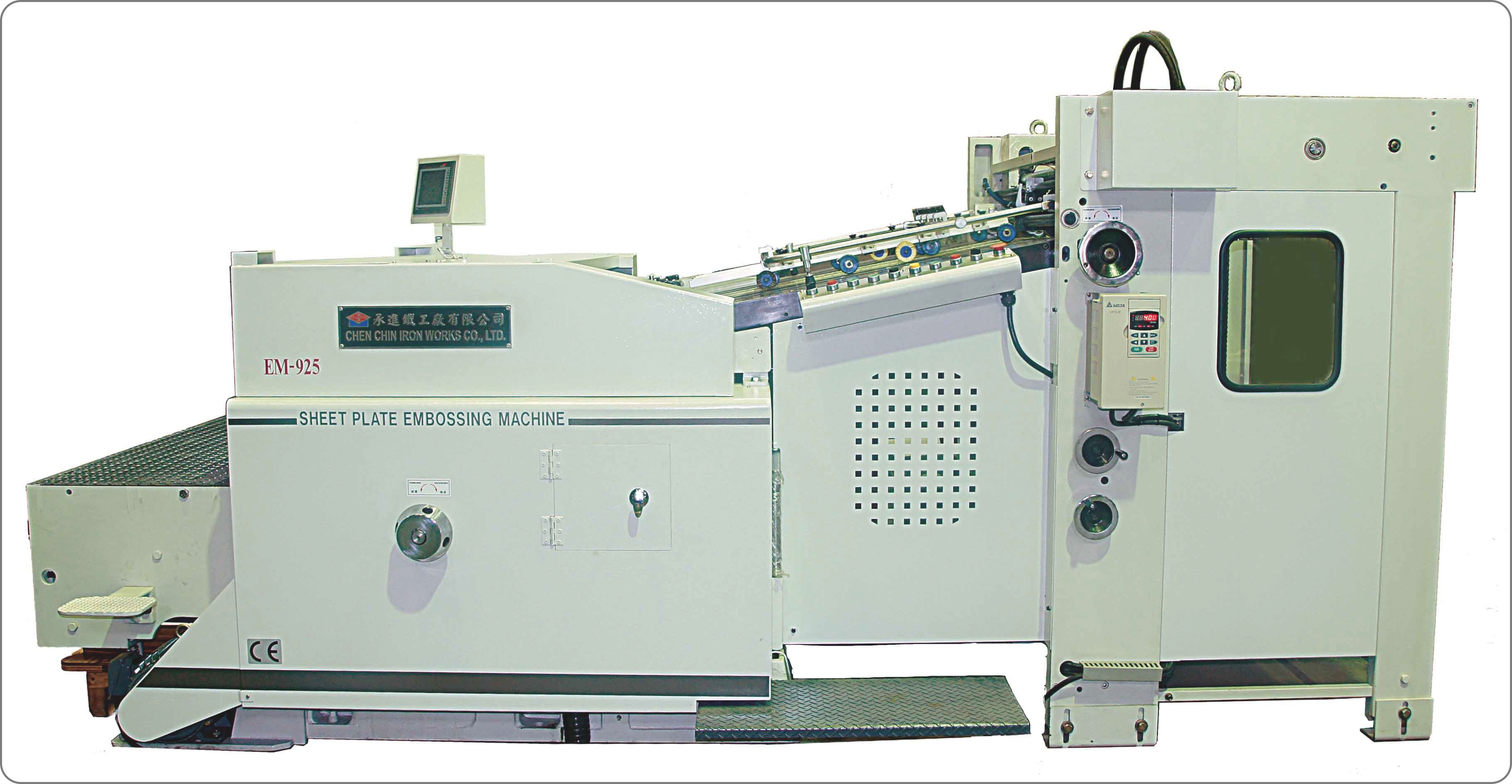

The EM-925 is a compact, space-saving embossing machine with a maximum standard delivery height of 50 mm. Its low-profile paper delivery platform simplifies sheet removal and stacking.

Model: EM-925

The model EM-925 can be upgraded to the EMH-925 configuration, which raises the delivery pile height to 1,000 mm for high-volume production environments.

EMH-1050 — Large-Format Embossing

The EMH-105 is designed for applications requiring larger embossing coverage. It provides an enlarged embossing area of 1,050 × 725 mm and accommodates sheets up to 1,050 × 730 mm.

Model: EMH-925 / EMH-1050

TECHNICAL SPECIFICATIONS
Specification	EM-925	EMH-925	EMH-1050
Embossing Area (mm)	920 × 695	920 × 695	1050 × 725
Max. Sheet Size (mm)	925 × 700	925 × 700	925 × 700
Min. Sheet Size (mm)	400 × 360	400 × 360	500 × 360
Blanket Size (mm)	925 × 790	925 × 790	1050 × 870
Stainless Steel Sheet (mm)	0.7 × 925 × 800	0.7 × 925 × 800	0.7 × 1040 × 820
Paper Thickness (mm)	0.08–0.8	0.08–0.8	0.08–0.8
Machine Dimensions (mm)	3600×2100×1550	5400×2100×1650	5400×2250×1650
Machine Weight (kg)	4,000	4,800	5,600
Feeder Pile Height (mm)	1,000	1,000	1,000
Delivery Pile Height (mm)	50	1,000	1,000
Max. Output (sheets/hr)	4000	4000	4000

KEY FEATURES & TECHNOLOGY
1	Space-Saving Low Delivery	Compact design with only 50 mm delivery pile height (standard). Upgradeable to 1,000 mm high-pile platform (EMH-925).
2	Heavy-Duty Cast Iron Body	Machine frame constructed from high-tenacity casting iron for superior structural rigidity, stable operation, and minimal vibration.
3	Stream-Type Sheet Feeder	Precision stream feeding ensures consistent paper registration and reliable throughput at full production speeds.
4	Even-Pressure Roller System	Uniformly distributed roller pressure across the full sheet width significantly extends rubber blanket service life.
5	Multi-Point Temperature Control (Patented)	Exclusive Invention patent multi-zone heating system maintains uniform temperature across the embossing plate — eliminating hot spots.
6	Up to 200 °C Working Temp.	Capable of sustaining process temperatures up to 200 °C, accommodating a wide range of embossing substrates.
7	HMI Touchscreen	HMI with one-button operation and temperature memory storage function, and the screen color changes to remind you when the temperature is reached.
8	High-Endurance Heater	Specially engineered heater withstands continuous hightemperature operation with virtually zero maintenance requirement.
9	Auto-Oiling Lubrication	Automated lubrication system with programmable oiling intervals, intermittent cycles, and low-oil alarm for proactive maintenance.
10	Large-Format Embossing	Enlarged 1,050 × 725 mm embossing area for greater working coverage on large-format sheets.

Specifications subject to change without notice.

◆ Embossing Applications


Micro Embossing	Whisky box Candy box Liquor label

C O N T A C T U S

CHEN CHIN IRON WORKS CO., LTD.

No. 67-2, Lane 124, Chao-Chung 1st St., Banqiao, New Taipei City, Taiwan

TEL +886-2-2965-6749 FAX +886-2-2968-3414

EMAIL cclchang@ms14.hinet.net

WEB www.chenchin.com.tw

We accept OEM and ODM embossing plate manufacturing projects and provide complete hardware and software support solutions.
